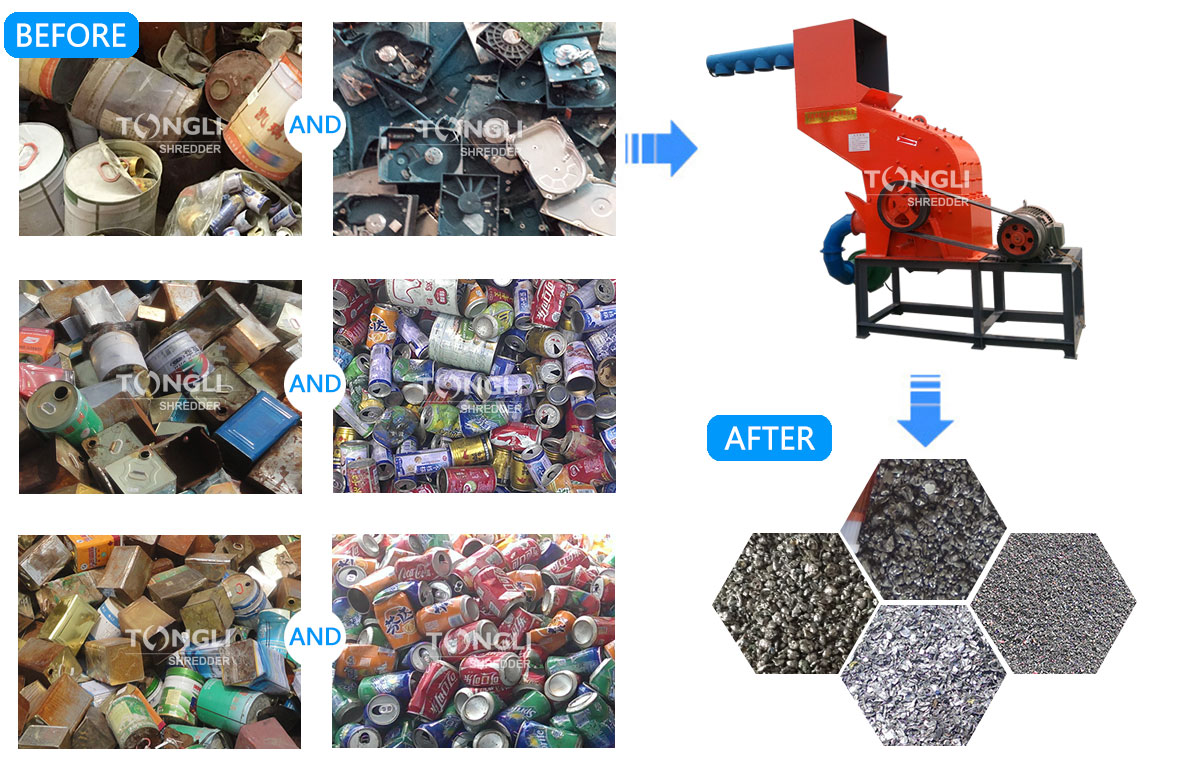

With the development of society, a large number of waste cans, paint buckets, hard drives and other small materials are produced every year, which not only has an impact on the environment, but also causes a waste of resources. The TL6050 small metal crusher turns waste into treasure, effectively protecting the natural environment and resource utilization. The small metal crusher produced by TONGLI SHREDDER is an advanced crushing equipment. When working, the material can be fully and effectively finely crushed in the crushing cavity, with high output, low energy consumption, high efficiency, uniform and uniform discharging. The system is equipped with a dust removal device to reduce the hazard of dust pollution generated during the production process. Therefore, when the equipment is used, it has low noise, no pollution, simple operation and convenient maintenance. This machine is widely used in cans, tin cans, pig iron scraps, aluminum ash, lulu cans, moon cake tin boxes, wanglaoji cans, Sprite cans, cola aluminum cans, beer cans, tin barrels, oil barrels, paint cans, etc. It can be adjusted by the screen according to the user's requirements, so that the material will be deformed and split into fine particles in the shape of a ball through the action of external force in the machine body. Not only can the cans be broken to meet your requirements, but the paint on the metal cans can be ground off, and then the paint and impurities in the metal can be cleaned up by the action of the fan and the dust collector.

The small metal crusher can not only crush all kinds of small materials, but also meet the needs of a low-carbon and environmentally friendly society, and realize the reuse of waste materials, which is recognized by customers. The use of small metal crushers by TONGLI SHREDDER every year can save my country hundreds of millions of tons of aluminum materials, so this is also a new environmental protection project supported by the state.

Device Configuration:

The whole set of equipment includes one host, one feeding conveyor, one discharging conveyor, one iron-aluminum separation magnetic roller, one operating cabinet, one set of dust collector, and one motor. Remarks: The screen can be configured according to customer requirements.

working principle:

Using the basic principle of hammer head striking, driven by a high-speed and high-torque motor, the hammer head on the rotor of the main machine takes turns to hit the object to be crushed into the cavity, and the object to be crushed passes through the space formed between the liner and the hammer. In the crushing cavity, sufficient and effective fine crushing can be obtained, and the to-be- crushed material can be torn into the crushed material that meets the specifications. The crushed materials go through an air whirling sorting system to separate metals and non-metals. In addition, the entire system is equipped with a dust removal device to reduce the dust pollution hazards generated during the production process. The metal particles crushed by the metal crusher can reduce transportation costs, improve the efficiency of ironmaking in the furnace, and also play a role in deoxidation or metal processing in steel plants.

High-quality metal crusher solutions

Raw materials are strictly controlled! The quality of the metal crusher is determined by the raw materials! Tongli has used many years of production experience to determine a batch of stable quality metal crusher raw material suppliers, and every batch of raw materials enters the factory to carry out rigorous quality checks to ensure that they can produce high-quality metal crushers!

Strict quality inspection of finished products! No matter how perfect the production management process is, there will be occasional defective products. What TONGLI people can do is to strictly complete the quality inspection, mass, and multi-batch product inspections while fully optimizing the production process, so as to provide you with high High-quality metal crusher and ensure the perfect implementation of crusher solutions.

What are the wearing parts?

Vulnerable parts refer to parts that are easily damaged. Because they are easily damaged, they should be checked frequently, and daily maintenance and regular repair work should be done. If they are damaged, they must be replaced in time to avoid delays in production. Let’s talk about the vulnerable parts of the metal crusher for everyone to prepare in advance.

1. Knives: Knives are easy to wear. The cutting edges of the knives will gradually change from sharp to blunt during normal operation. If the blades are not worn too much, they can be sharpened with oilstone. When the wear is large, new blades need to be replaced.

2. Feed inlet liner: The feed inlet liner is an important vulnerable part of the metal crusher. After the liner wears and ages, the anti-hit ability decreases, which often causes the liner to be shot down, and also causes the sealing performance of the sawdust machine to decrease. Big dust. If it is found to be worn out, it must be replaced in time.

3. Hammer: The hammer will also be worn for a period of time. If worn to a certain extent, it will affect the crushing effect and cause safety hazards, so it should be adjusted and replaced in time.

4. Hammer shaft: The hammer shaft is made of high chromium alloy steel, which is mainly used to drive the hammer to rotate at a high speed. If there is excessive wear or deformation, it should be replaced in time.
