Scrap Motor casing cutting machine,stator separator and copper pulling machine
Scrap Motor casing cutting machine,stator separator and copper pulling machine is the production technology field of metal cutting and separating equipment. It is mainly used to break open the frame housing of the stator of waste motor and separate the silicon steel sheet and copper wire in the frame housing. Traditional production sites usually use scissors to cut or shovel one end, and then remove it from the other end. This method is labor intensive and low in production efficiency, and is not suitable for mass repair work.

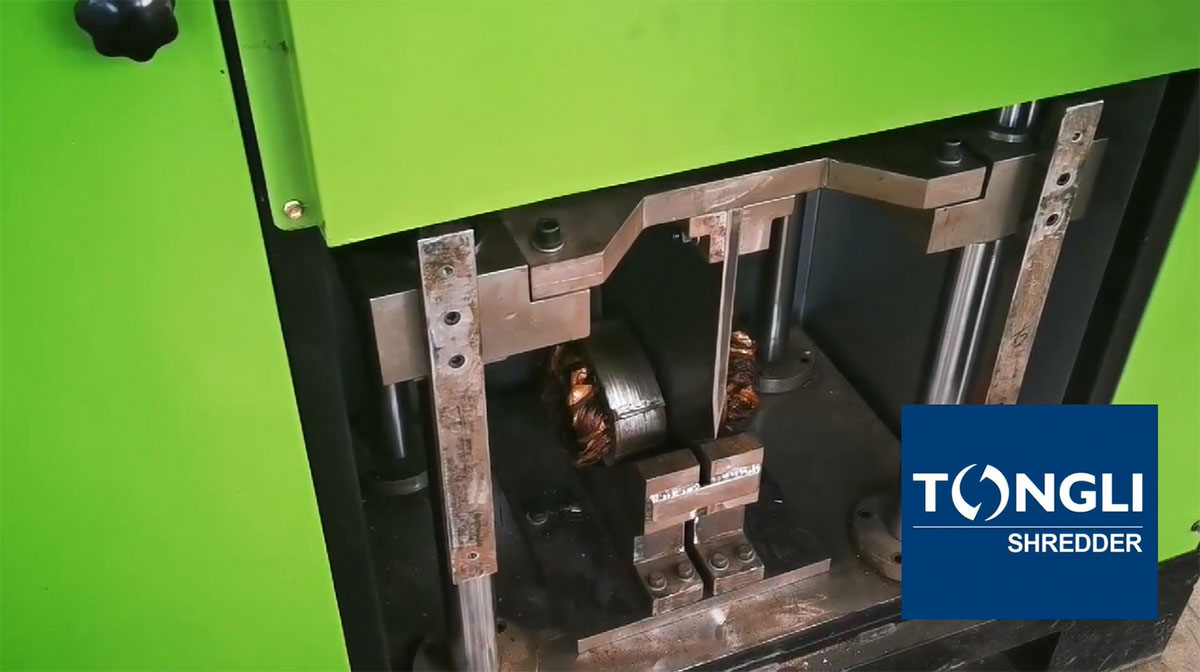

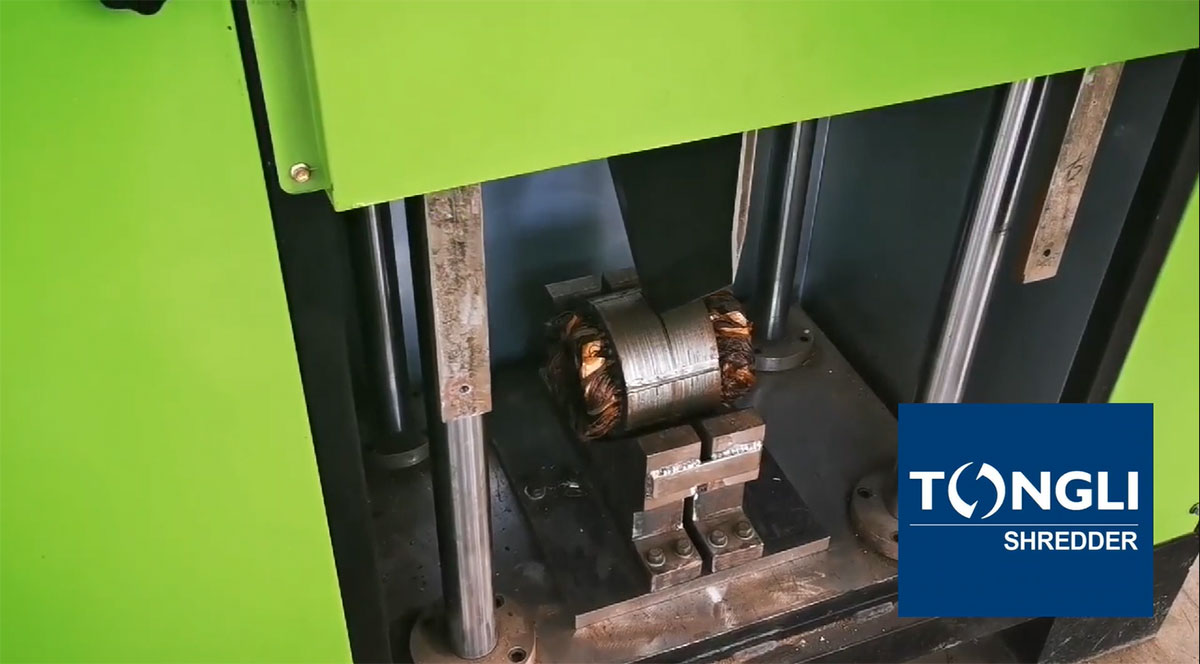

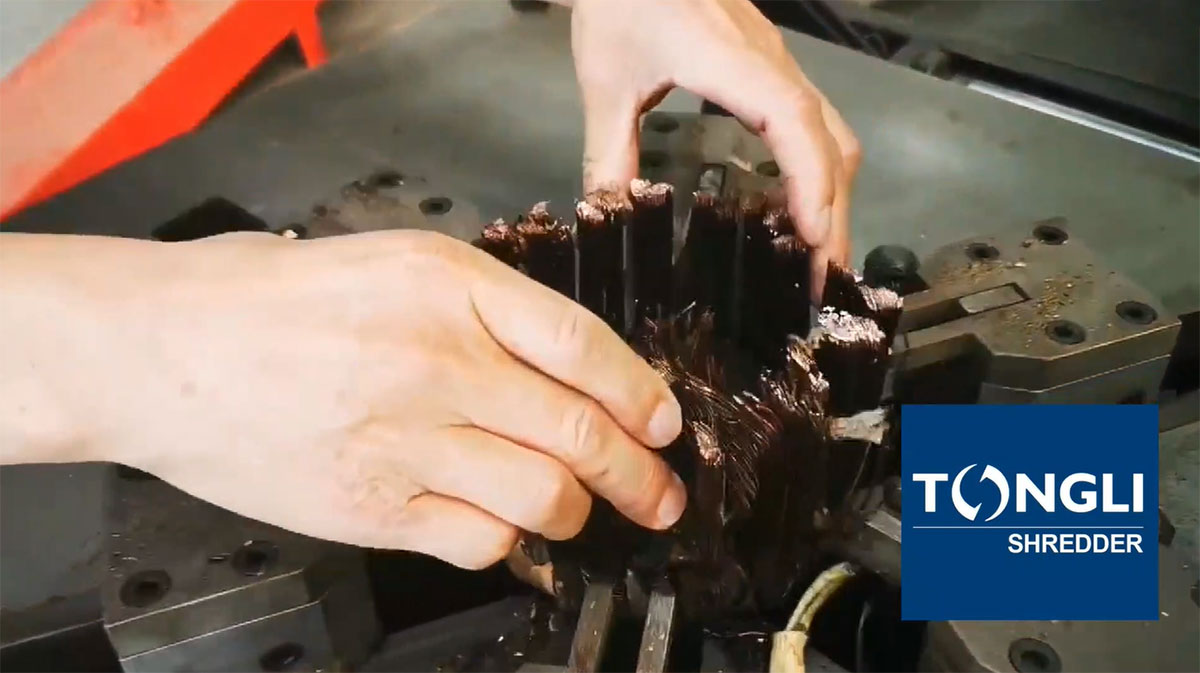

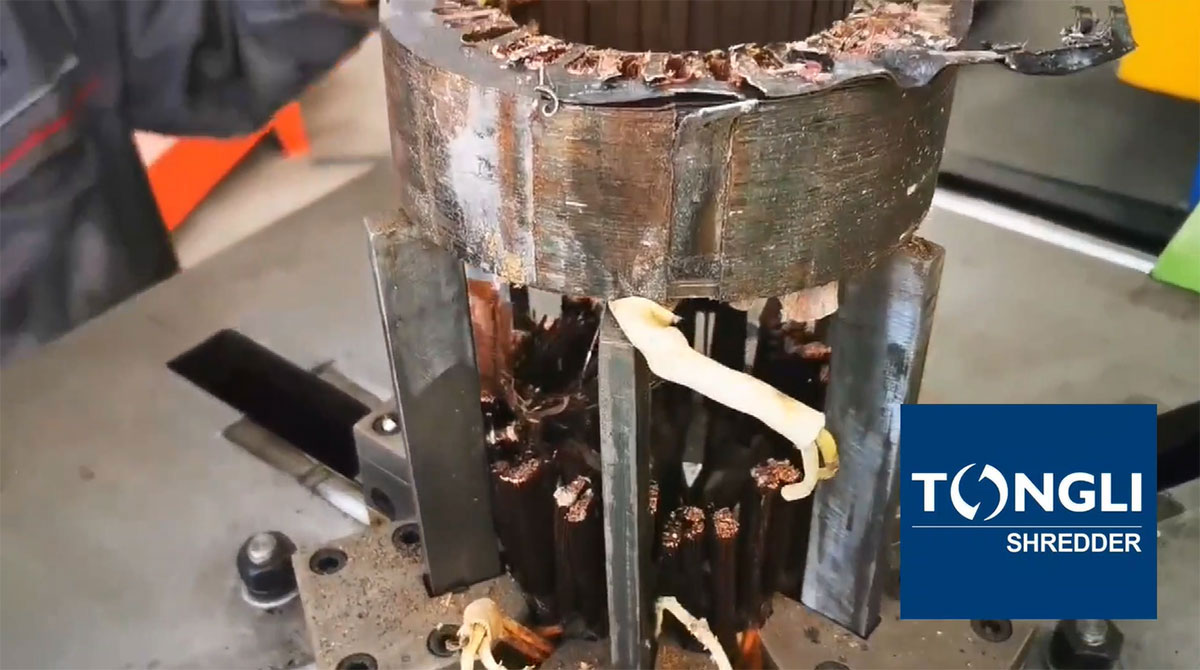

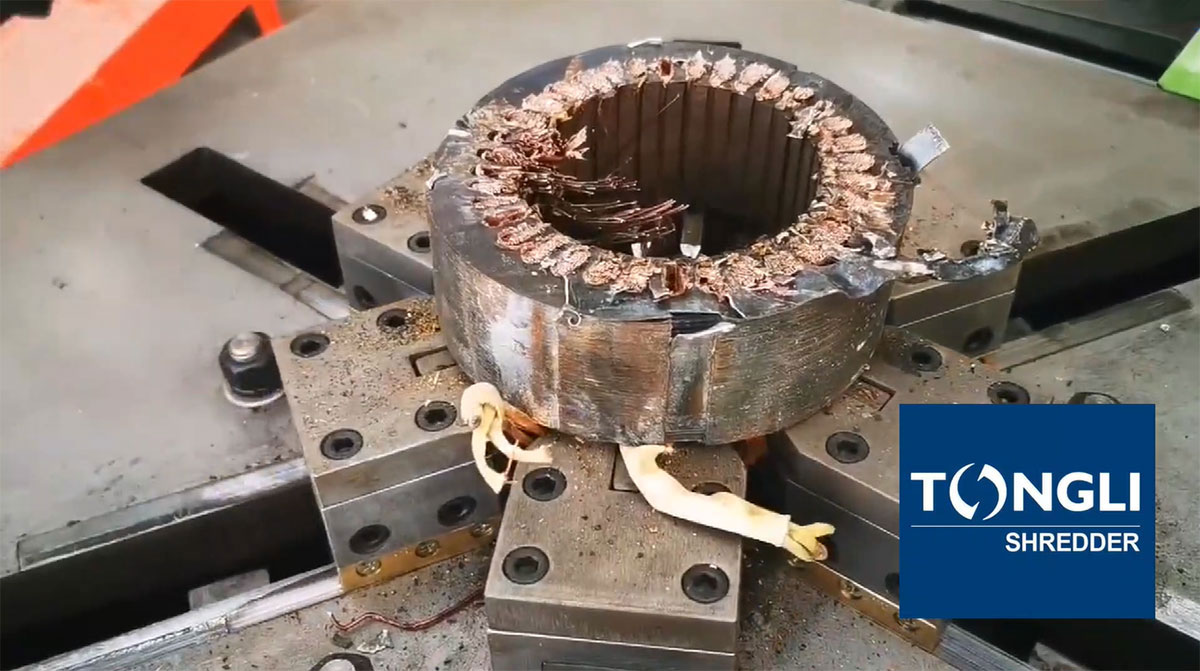

Scrap Motor casing cutting machine,stator separator and copper pulling machine replaced manual operation with mechanization. The main technical points are the cutting machine used to cut the motor stator frame housing, and the copper pulling machine used to separate the silicon steel sheet and the copper wire. machine. After the housing shell of the stator of the waste motor is cut and cracked by the cutting blade, the cylindrical iron core of the stator is cut off, and the cut cylindrical iron core is taken to the top worktable panel, and the silicon steel sheet and the copper wire are separated. The separation is that after the clamping jaws clamp the copper wire winding, the ejector rod pushes the cylindrical iron core apart.
Main functional advantages:
1. The whole machine has reasonable structure, simple operation, safe use and more reliable performance;
2. The hydraulic system is adopted, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced;
3. The equipped cutting blade adopts high wear-resistant carbide knife, which is easy and reliable to operate, fast in cutting speed, and does not produce adhesion and burrs;
4. Equipped with automatic thread catching device, which enables workers to reduce labor intensity during operation;
5. The reciprocating distance of the cutting blade and the wire grabber can be adjusted, which is more conducive to placing the stator coil.

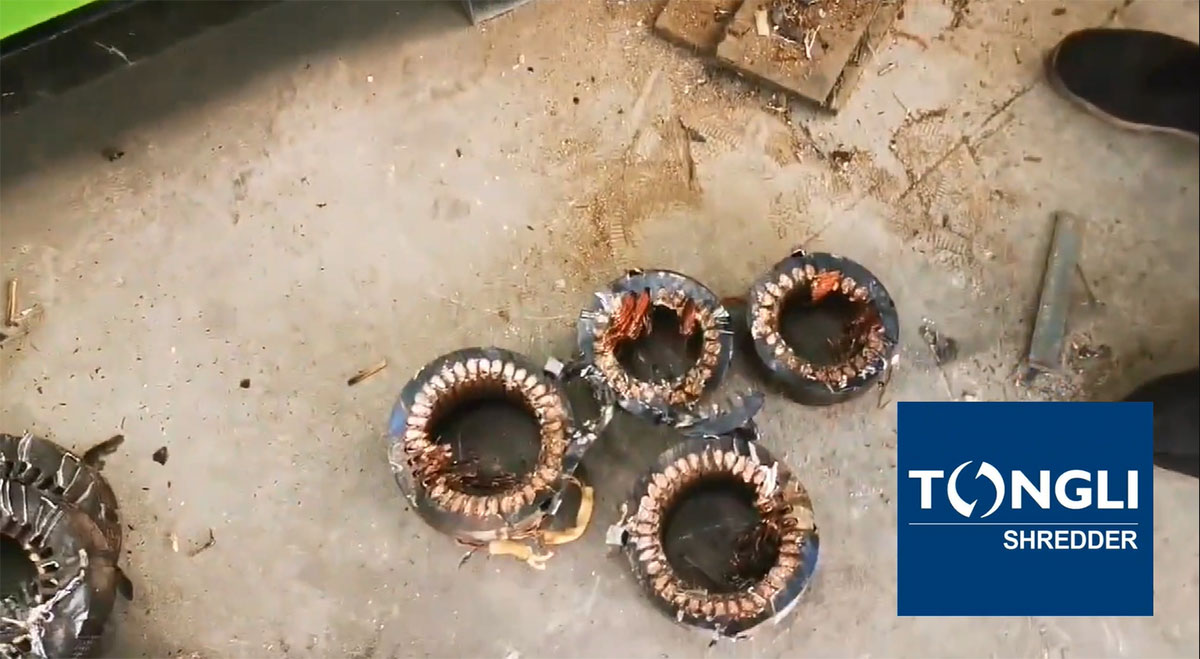

After a series of mechanical operations, the waste motor housing and stator have realized the separation of the silicon steel sheet and the copper wire, and the waste has been recycled again. The application of dismantling equipment for used electric motors is mainly to recycle the copper wire in the electronic stator by the cooperation of a cutting machine and a copper drawing machine. The recycled copper wire and silicon steel sheet can be reused to avoid wasting materials. The equipment is also widely used in some plants that specialize in recycling motors and dismantling. For washing machine motors, it is also widely used in the recovery of copper wires in air-conditioning compressors.
