Three models and introduction of hydraulic scrap metal baler
With the rapid development of industrialization, the demand for metals in various countries is increasing. Due to the over-exploitation of metal resources and the irrational use and preservation of existing metals, the shortage of natural metal resources has brought new issues to the rational recovery, use, and smelting of scrap metals. The hydraulic scrap metal baler designed and manufactured by TONGLI SHREDDER proposes to rely on hydraulic pressure to pack and process scrap metal. It not only improves the utilization rate of scrap metal, but also eases the demand for metal resources to a certain extent.

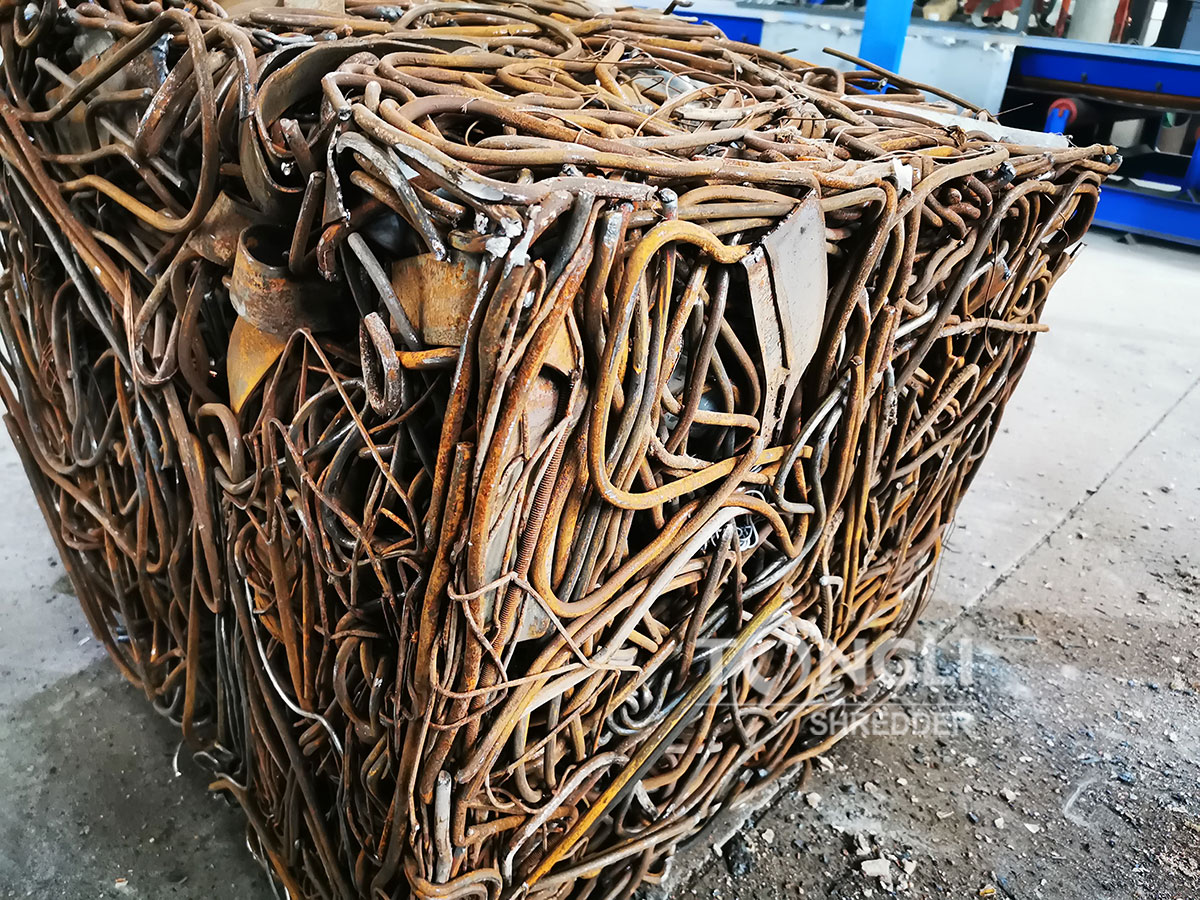

The hydraulic scrap metal baler is mainly Y81 series, there are three models of large, medium and small. Various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disassembled car shells, waste paint buckets, cans, iron cans and other metal raw materials can be squeezed into cubes, cylinders, etc. Qualified charge of various shapes is mainly used in recycling and processing industries and metal smelting industries and other renewable industries.

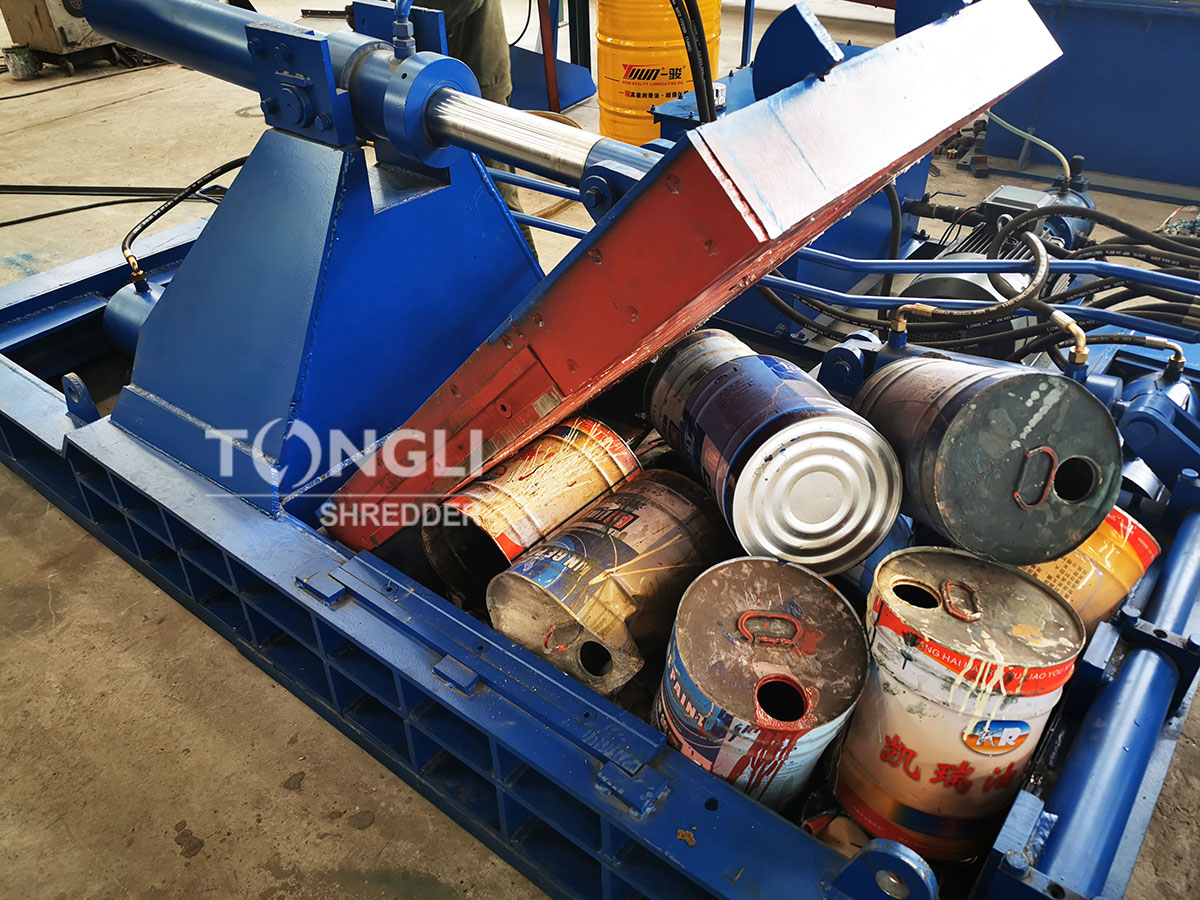

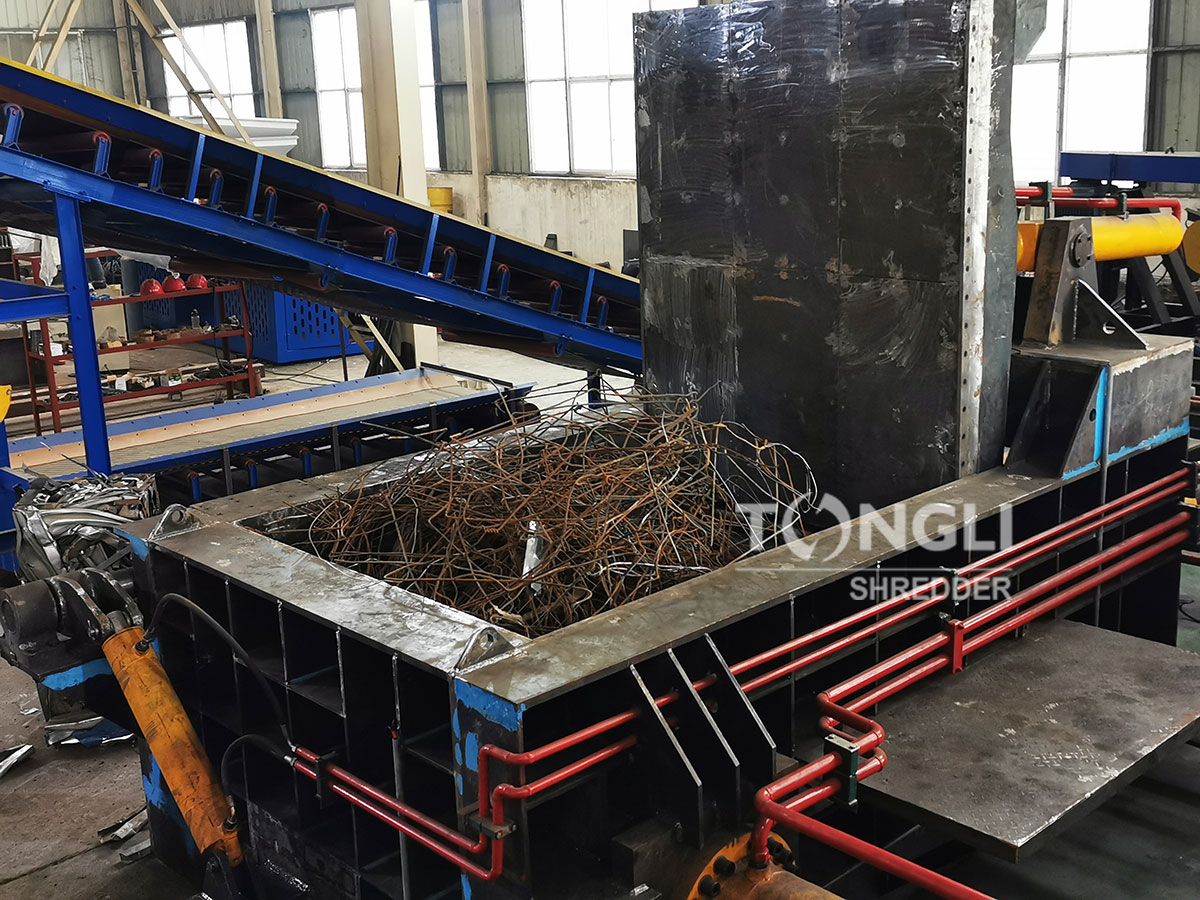

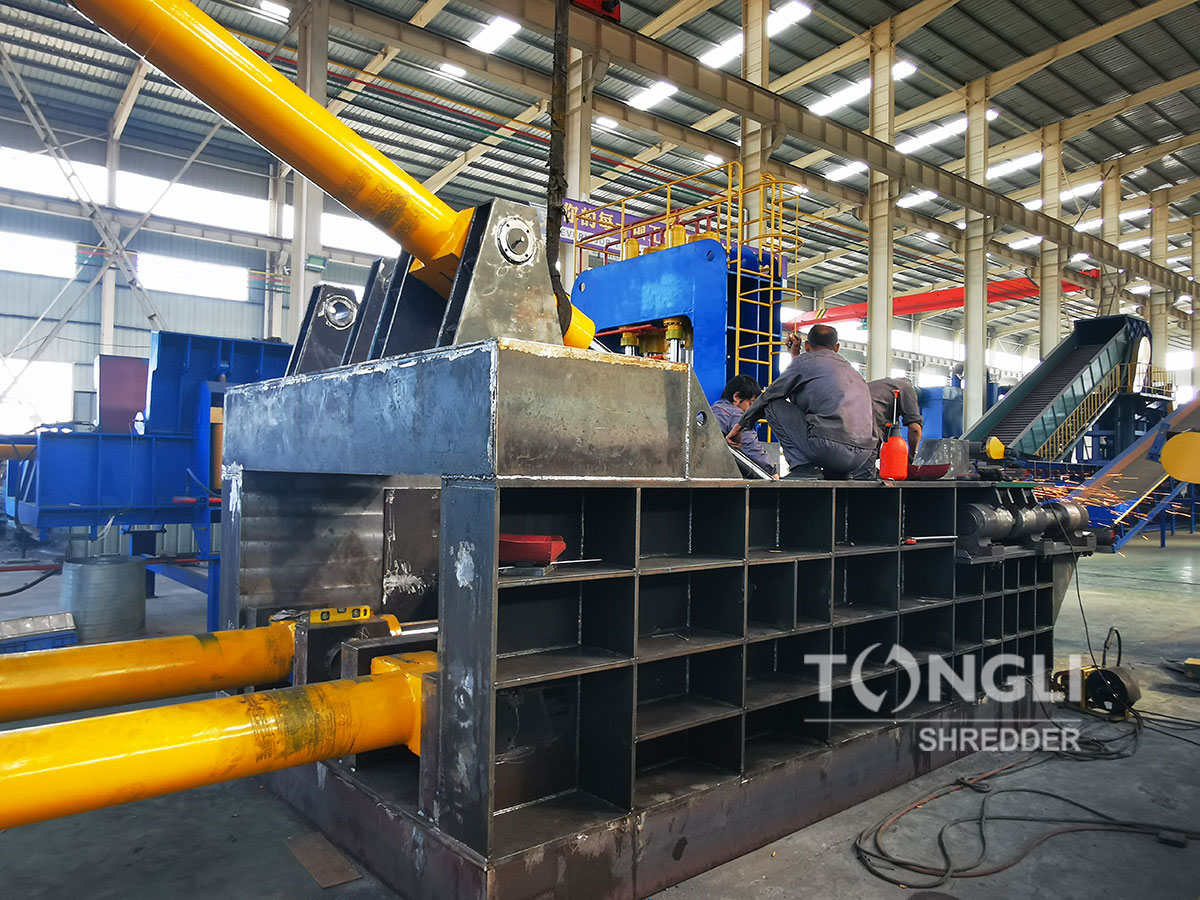

The hydraulic scrap metal baler is a typical metal recycling machine. The baling materials are placed in the baler bin. The hydraulic cylinder works to suppress the baling materials and compress them into various metal bales. From the start of the station operation after feeding, to the ejection of the bale, the movement stops, which is a single working cycle. The procedure is as follows:
1. Close the lid and close the feed port to form a compression chamber. After the upper auxiliary cylinder closes the feed inlet door, the main cylinder fast forwards and pre-compresses the loose metal scrap. The height of the compression chamber is the block height.
2. The pressure head of the master cylinder continues to advance and pressurize in the positive direction of X. Until the waste is compressed into bales and reaches the position of the width of the bales. In this way, a high-pressure chamber is formed at the front end of the compression chamber.
3. After re-feeding, the main cylinder circulates fast forward and work advances to provide high pressure. This level of pressure is in the high pressure chamber to shape and qualitatively squeeze the preliminarily formed bundles to form tighter bundles. Meet the length requirement of the bale.

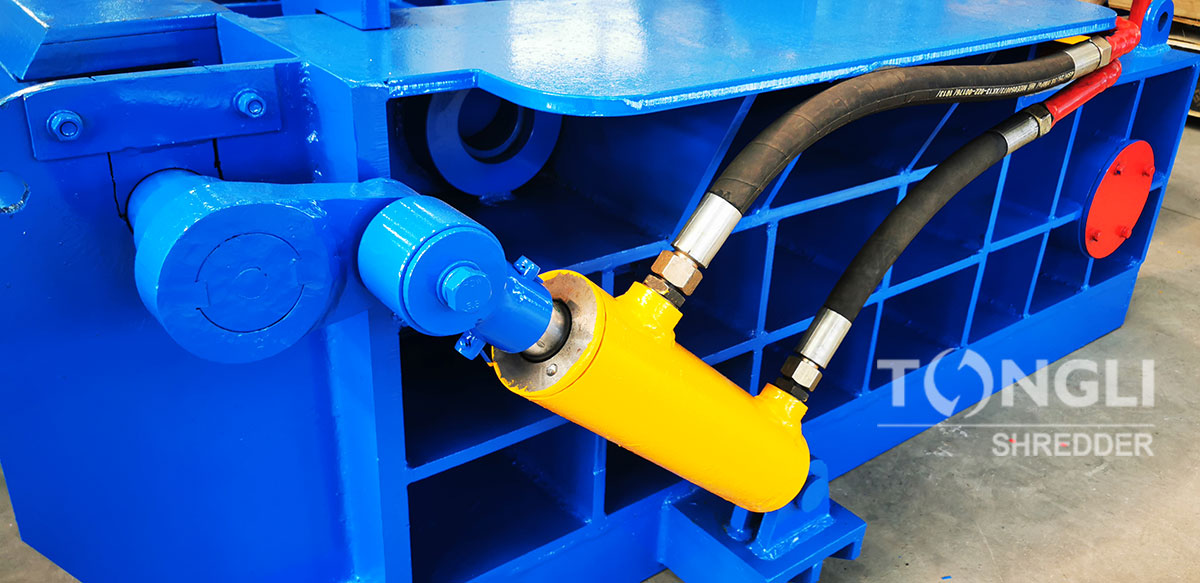

4. After the bale is formed, the auxiliary cylinder will push open the bale out door on the side of the fuselage under the pressure of the main pressure head.
5. Use the main pressure head to move forward and push the bale out of the machine from the side door.
6. The main and side pressure heads are retracted, the side door is closed, and the machine cover is opened. Then the feeding of the next working cycle can be carried out. The above-mentioned procedures are the basic station cycle, during which there are some auxiliary movements, such as continuous pressure, pressure retention, and pressure relief.
Product features:
1. It adopts a rotating closing cover structure, and the opening area of the material box is large, which is particularly convenient for the feeding of large, empty and thin materials.
2. All moving parts are driven by hydraulic pressure and work smoothly; the packing pressure is high, the bundles are tight, and the packing efficiency is high.
3. The manual reversing valve is simple, convenient, safe and reliable.
4. No foot screws are required for installation, and diesel engines can be used as power in places where there is no power supply.
5. Product specifications and types: The metal baler has 63 to 600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.
6. The machine is simple to operate, easy to maintain and reliable in sealing.
Product features after using hydraulic scrap metal baler:
1. It is convenient to transport metal materials after packaging, which can effectively reduce transportation costs and increase transportation efficiency;
2. After packaging, the metal is convenient for crushing and secondary processing;
3. Packed metal materials are easier to store than metal, which can save a lot of warehouse space;
4. Packing metal is convenient for use and reprocessing.
As countries pay more attention to human environmental pollution, how to use metal waste has become an important research topic? Because the hydraulic baler can pack and recycle scrap metal and reuse resources, it has broad development prospects. Customers who want to invest in a hydraulic scrap metal baler, act quickly!
