MOTOR ROTOR SHREDDING PRODUCTION LINE -RECYCLE FERROUS METAL AND NON-FERROUS METAL (PCL1500)

MOTOR ROTOR SHREDDING PRODUCTION LINE

inquire about this equipment

　　Motor rotor has copper and iron, has aluminum and iron, shred it and recycle iron, copper, aluminum to increase the value.

APPLICATION

　　This shredding production line is high efficient to shred motor rotors, the vertical shaft with hammers can shred the scrap materials completely in the short time, the following scrap materials can be shredded very well:

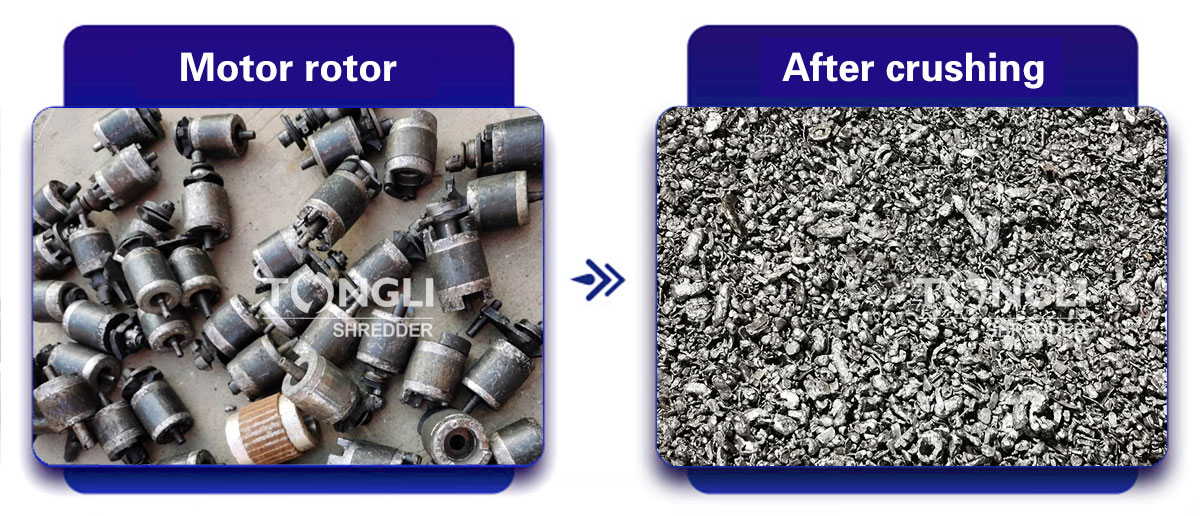

Before and after motor rotor crushing
TECHNICAL PARAMETERS

ModelRotor diameter(mm)Feed Size(mm)The particle size(mm)Processing capacity(t/h)Power(kw)Dimensions(L×W×H)(mm)
PCL15001500360×450≤16030-80132-1603100×1900×3000


CONFIGURATION

       Motor Rotor shredding plant, includes the following equipment:
　　1. Infeeding belt conveyor
　　2. Vertical shredder
　　3. Vibrating feeder
　　4. Discharging belt conveyor with magnetic separator
　　5. Final belt conveyor　　

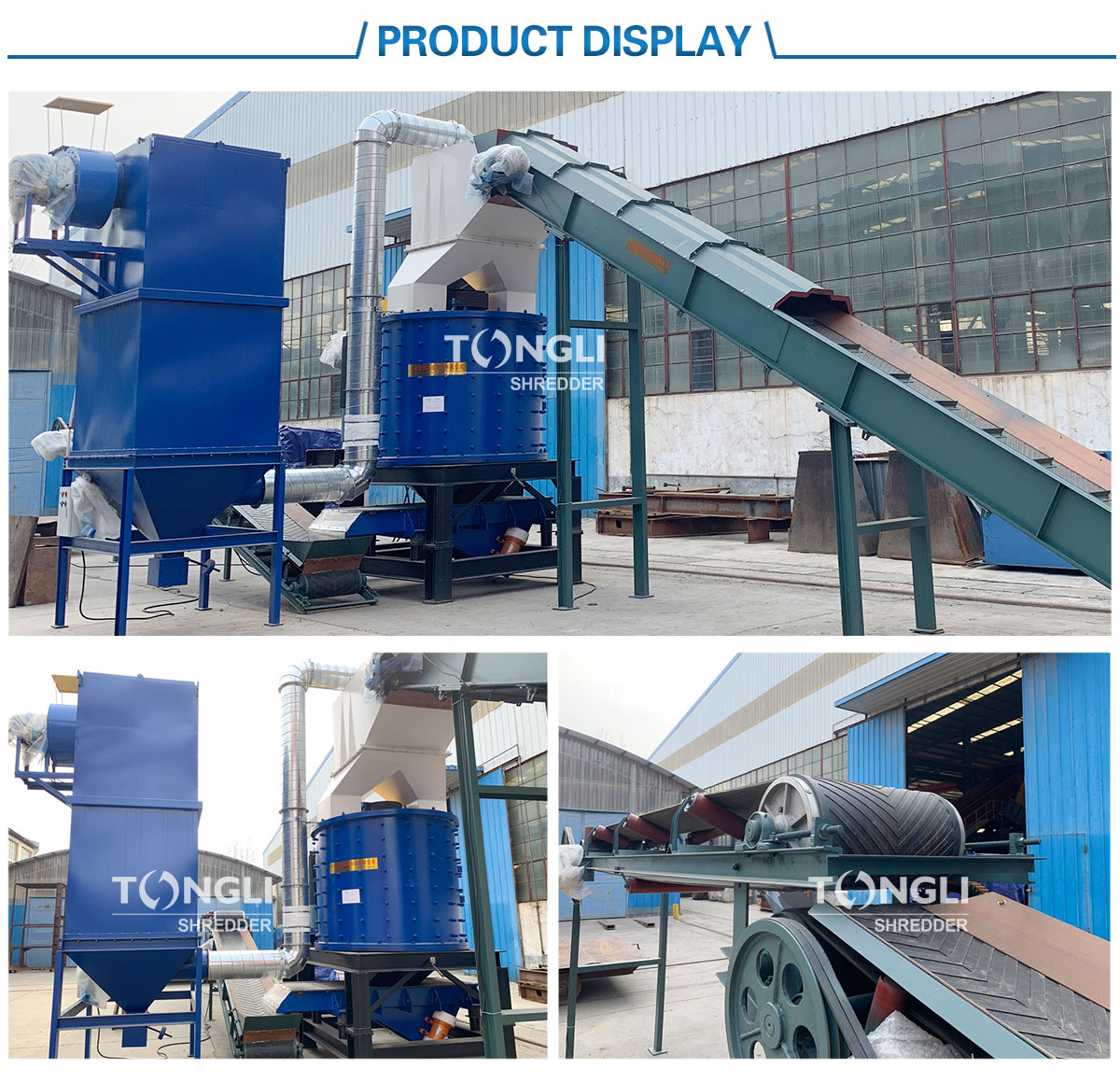

product display
