TL7080 hammermill shredder

inquire about this equipment

  Small metal crusher pnduced by Tongli Machine is Mainly used for crushing and separating metal can, paint bucket, hard drive and others thin-walled material as well as some small size material.
  This equipment combined with crushing, magnetic separation, de-dusting which can remove impurities, improve density, unify output shape, thus can achieve recycling purpose.

APPLICATION

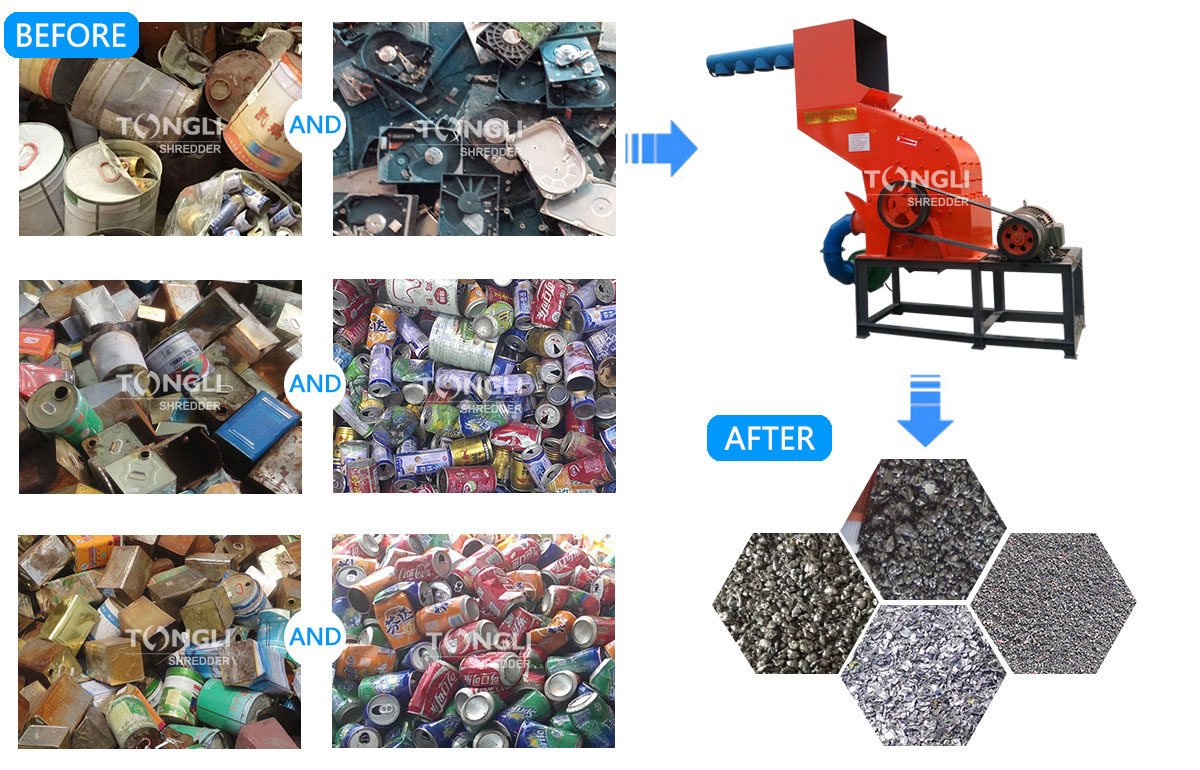

  TL7080 hammermill shredder mostly shred metal cans, paint bucket, hard drive and thin materials.

mostly shred metal cans, paint bucket, hard drive and thin materials
TECHNICAL PARAMETERS

ModelFeed Opening Size(mm)Motor Power(kw)Equipment footprint(m)Discharge size adjustment(mm)Capactity(t/h)Overall Dimension
TL70808003713×1.515-400.8-12500×1500×3100


Features

  1. TL7080 feeding opening size is 800mm.
  2. Crushing cavity width is 700mm, rotor's rotating diameter is 800mm.
  3. Power is 37kw, can customize the motor as customer's voltage condition.
  4. With range of final product size 15-40mm, the hole size of sieve plate can be customized according to customers' needs.

  5. Output granularity uniform, easy to feed in steel furnace, high ratio of exudative water during smelting.
  6. Output size can be adjusted by changing different sieveplate, to meet the multiple demands of customers.
  7. Simple structure, low maintenance cost, replace of spare parts easily.
  8. Alloy casting hammer and lining board with features of impact resistant,wear-resisting and low production cost.
  9. Within the space of cleaning to clean and maintain the inside of crusher.
