The main purpose of this unit is for various wire and cable, household appliance lines, communication lines, computer lines and other waste wires that are not suitable for processing. The large and small wires can be broken at the same time without classification, and the dry separation of metal and plastic of various waste wires can be achieved Recycle. It has large production volume, low power consumption, high sorting rate, one-time feeding, multi-machine collaboration (crushing, conveying, vacuuming and dry separation), fully automatic intelligent control, only one person can produce, and Advanced dust collection device. It not only improves the quality of recycled copper, but also recycles and reuses plastics, while solving environmental pollution.

APPLICATION

　　Waste wire processing. Various wire and cable, household appliance lines, communication lines, computer lines and other wire stripping machines are not suitable for processing waste wire.

TECHNICAL PARAMETERS

EQUIPMENT COMPOSITION

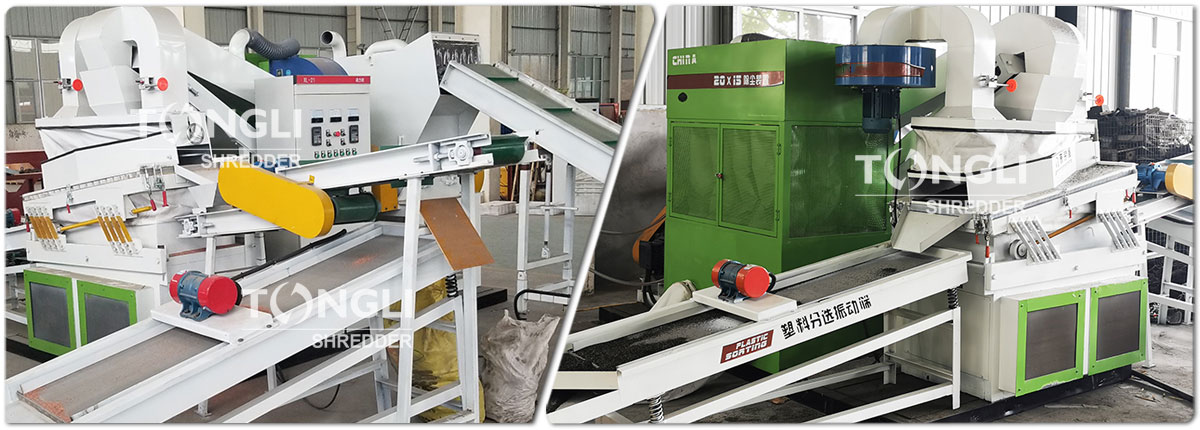

　　The main equipment of the CRL600 unit is composed of six major parts: the crusher, conveyor, dust collector, magnetic separator, specific gravity separator, and vibrating screen. The production line covers an area of 15 square meters; the entire line power: 40.25kw.

WORKING PRINCIPLE

　　Under the action of wind force, two kinds of materials with different densities pass through the deflection caused by the amplitude movement of the screen surface at a certain angle, so that the copper wire with high density advances to the copper outlet against the screen, and the plastic skin with low density floats on the copper. The silk flows to the skin outlet, so as to achieve the purpose of copper-plastic separation. The cleanliness of separation is proportional to the diameter of a single copper wire. The thicker the copper wire is, the cleaner the separation is from the plastic, and the greater the output per unit time. The smaller the diameter, the smaller the copper wire is from the plastic. The worse.
