CR800 cable recycling machine

inquire about this equipment

      The main purpose of wire processing equipment (copper meter machine): this unit is suitable for all kinds of wire and cable, household appliance wires, communication wires, computer wires and other waste wires that are not suitable for processing. Large and small wires can be broken at the same time without classification, achieving a variety of Dry separation and recycling of scrap metal and plastic. It has large production volume, low power consumption, high sorting rate, one-time feeding, multi-machine collaboration (crushing, conveying, vacuuming and dry separation), fully automatic intelligent control, only one person can produce, and Advanced dust collection device. It not only improves the quality of recycled copper, but also recycles and reuses plastics, while solving environmental pollution.

APPLICATION

  Sorting of waste wires and non-ferrous metals. All kinds of wire and cable, household appliance lines, communication lines, computer lines and other wire stripping machines are not suitable for processing scrap wires.

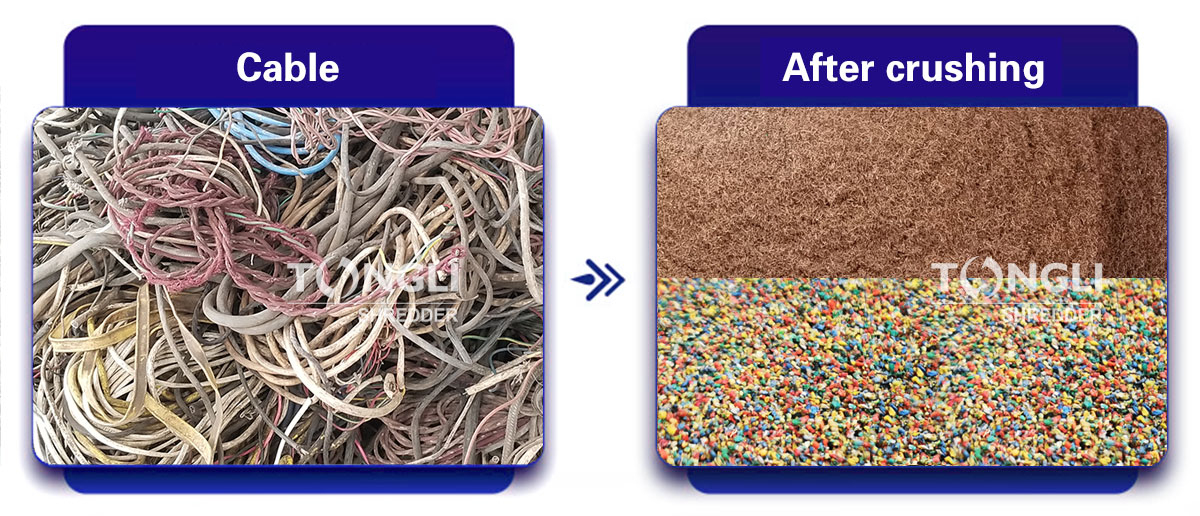

Before and after cable crushing

TECHNICAL PARAMETERS

ModelCrusher power(kw)Dust fan power(kw)Yield(kg/h)Processing range(mm)Motor voltage(v)Recovery rate
CR80055Not less than 5.5600-900Φ0.2-Φ20380/22098% or more


EQUIPMENT COMPOSITION

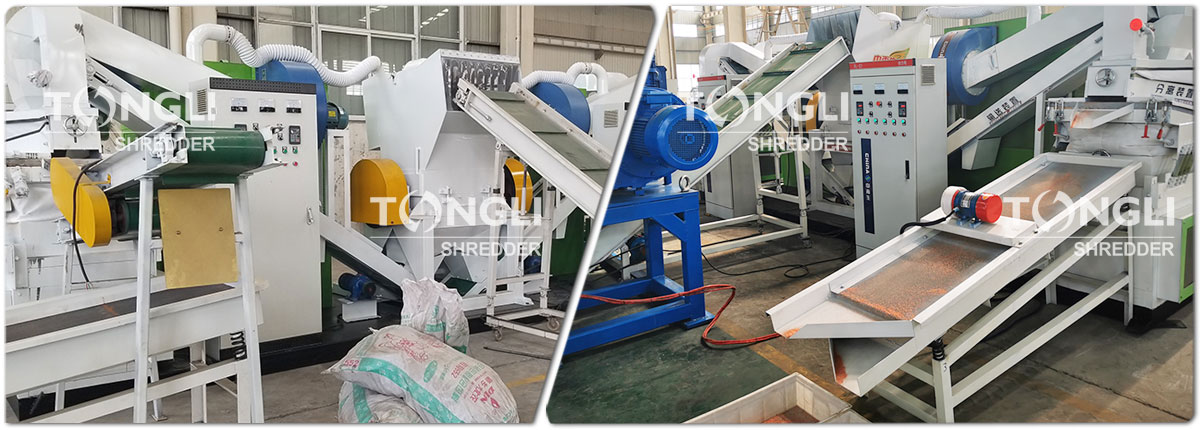

  The copper rice machine is mainly composed of five parts: crusher, conveyor, dust collector, fan, and sorting machine. Ancillary equipment includes knife sharpener and iron suction machine.

WORKING PRINCIPLE

  Under the action of wind force, two kinds of materials with different densities pass through the deflection caused by the amplitude movement of the screen surface at a certain angle, so that the copper wire with high density advances to the copper outlet against the screen, and the plastic skin with low density floats on the copper. The silk flows to the skin outlet, so as to achieve the purpose of copper-plastic separation. The cleanliness of separation is proportional to the diameter of a single copper wire. The thicker the copper wire is, the cleaner the separation is from the plastic, and the greater the output per unit time. The smaller the diameter, the smaller the copper wire is from the plastic. The worse.

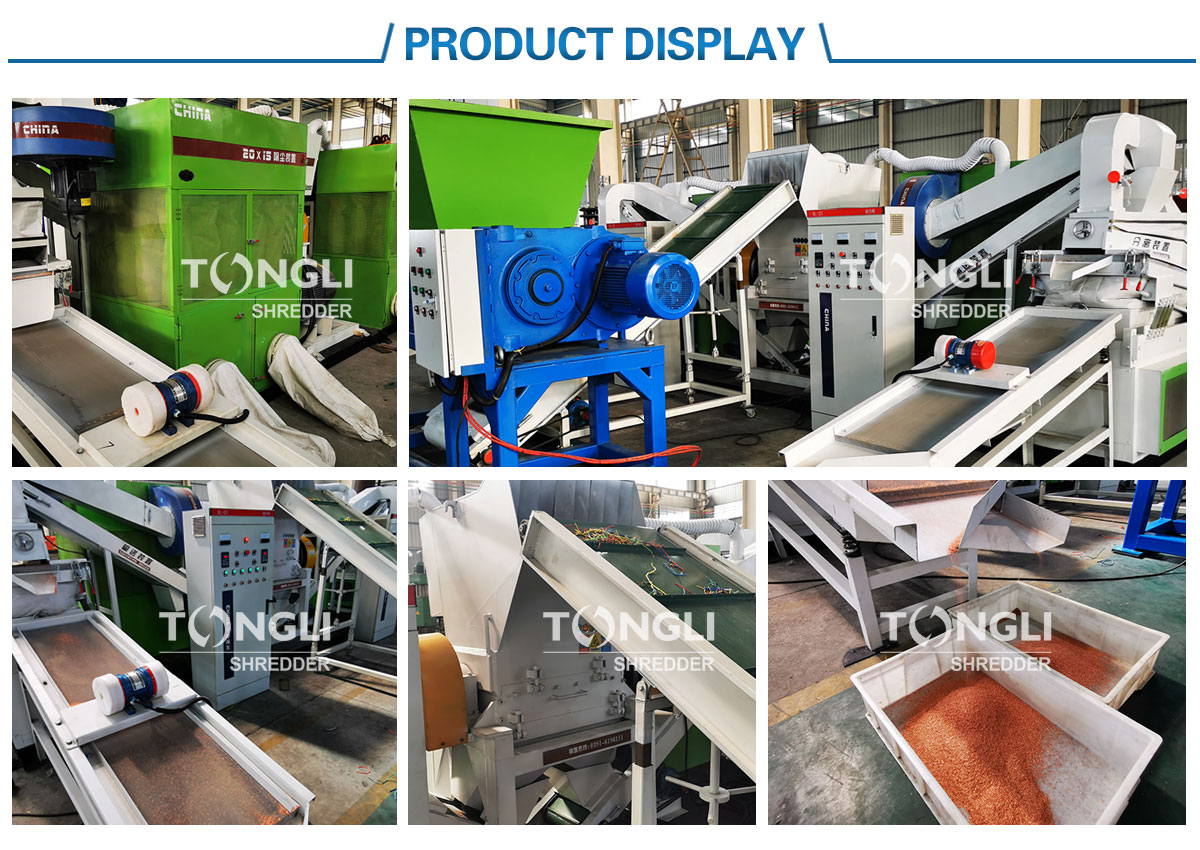

product display
overseas cases
visit
delivery
factory
