MEDIUM SCRAP METAL RECYCLING PLANT (PS1280—PS1614)

　　TONGLI PS series scrap metal shredding line, shred medium scrap metals to get 99.5% pure steel/iron with affordable and economic recycling solutions.

APPLICATION

　　We offer medium scrap metal recycling plant on the market with affordable investment and high recycling ratio, most of scrap materials are medium light as following:

Household appliance
Medium light metal furniture
Metal door & window frame
Bicycles, motorcycle cover
Steel tiles
Big metal painting bucket

　　Size of final products after shredding depends on the hole size of sieve plate, 40-160mm is the popular output size of medium scrap metal recycling plant for steel mills, we can customize the hole size of sieve plate as our customer's needs. Final Products are around 1.2tons/m3, recyclable rate is more than 90%, and get 99.5% pure steel/iron. With economic and affordable investment, TONGLI medium scrap metal recycling plant can be applied widely in medium scrap yards and steel works.

TECHNICAL PARAMETERS

Model	Feed Opening Size(mm)	Motor Power(kw)	Discharge size adjustment(mm)	Capactity(t/h)	Overall Dimension
PS1280	1200	75-110	40-120	1.5-3	3200×2100×3300
PS1210	1200	110-200	40-120	3-5	4800×2100×3300
PS1014	1200	110-200	40-120	3-5	2400×1900×2100
PS1214	1200	200-315	40-120	4-6	2400×2300×2100
PS1415	1400	200-500	40-120	5-8	2800×2600×2900
PS1680	1600	132-200	40-120	3-5	2800×2600×3800
PS1690	1600	260-400	50-200	5-8	2900×2600×4000
PS1614	1600	315-500	50-160	6-10	2900×2700×2300
PS1815	1800	400-500	50-200	8-12	2600×3200×2300

CONFIGURATION

Our PS series scrap metal recycling plant includes the entire line of equipment :
　　1. Feeding belt conveyor
　　2. Hammermill shredder (with optional pre-press machine)
　　3. Discharging belt conveyor with magnetic roller
　　4. Discharging belt conveyor (for final pure steel/iron)

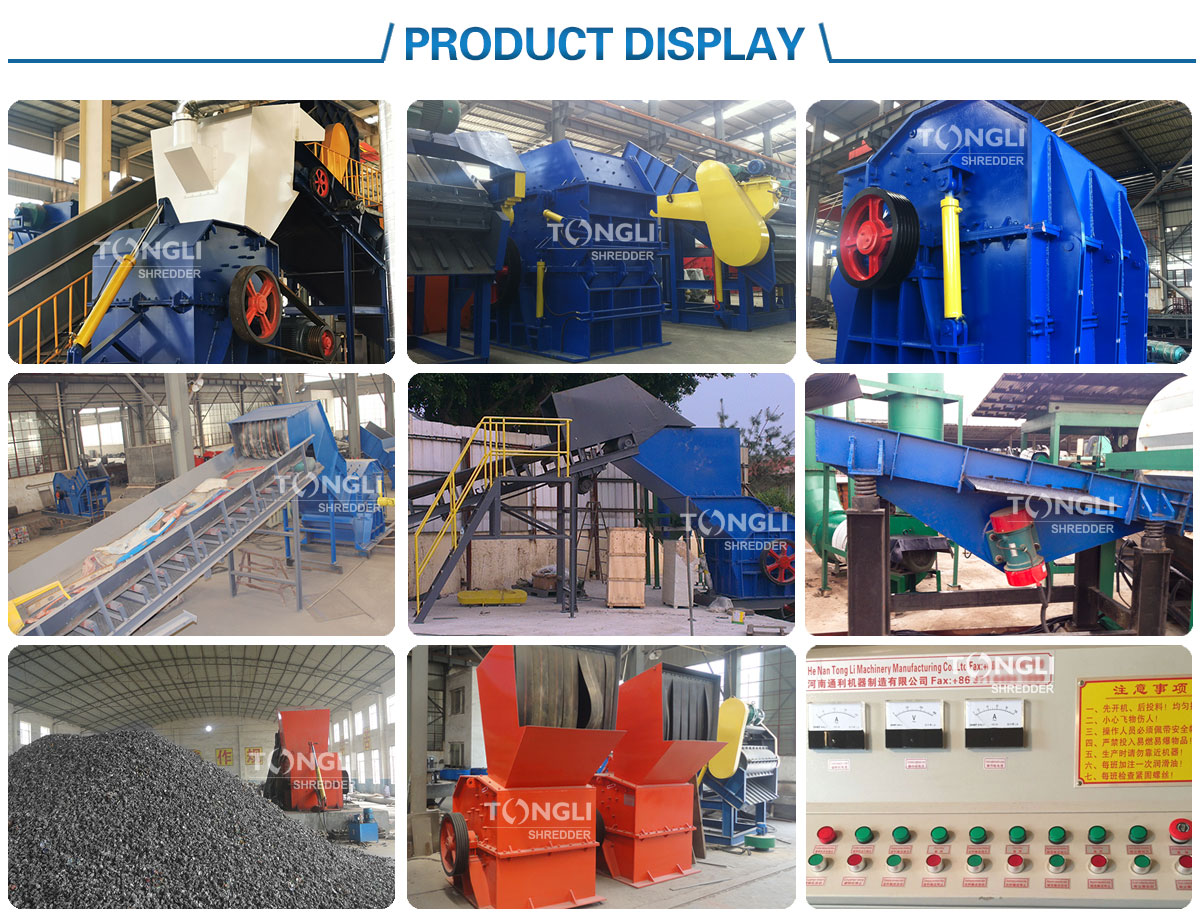

product display
