SMALL SCRAP METAL RECYCLING PLANT(TL6050—TL8012)

　　TONGLI TL series scrap metal shredding line, shred small scrap metals with removing rust and painting to get 99.5% pure steel/iron, uniform output granularity.

APPLICATION

　　Our TONGLI small scrap metal recycling plant is very popular to shred the small scrap materials as following :

Metal cans
Small metal painting bucket
Hard drive of computer

　　Size of final products after shredding depends on the hole size of sieve plate, 15-40mm is the popular output size of small scrap metal recycling plant for steel mills, we can customize the hole size of sieve plate as our customer's needs. Final Products are around 1.2tons/m3, recyclable rate is more than 90%, and get 99.5% pure steel/iron. With affordable investment, TONGLI small scrap metal recycling plant can be applied widely in small scrap yards.

TECHNICAL PARAMETERS

Model	Feed Opening Size(mm)	Motor Power(kw)	Equipment footprint(m)	Discharge size adjustment(mm)	Capactity(t/h)	Overall Dimension
TL6050	600	22	13×1.4	15-40	0.5	2400×1200×2800
TL7080	800	37	13×1.5	15-40	0.8-1	2500×1500×3100
TL8010	1000	55	14×1.7	15-40	1-2	2700×1800×3130
TL8012	1200	75	15×2	15-40	1.5-2	3100×2000×3750

CONFIGURATION

Our TL series small scrap metal recycling plant includes the entire line of equipment :
　　1. Feeding belt conveyor
　　2. Hammermill shredder
　　3. Discharging belt conveyor with magnetic roller
　　4. Discharging belt conveyor

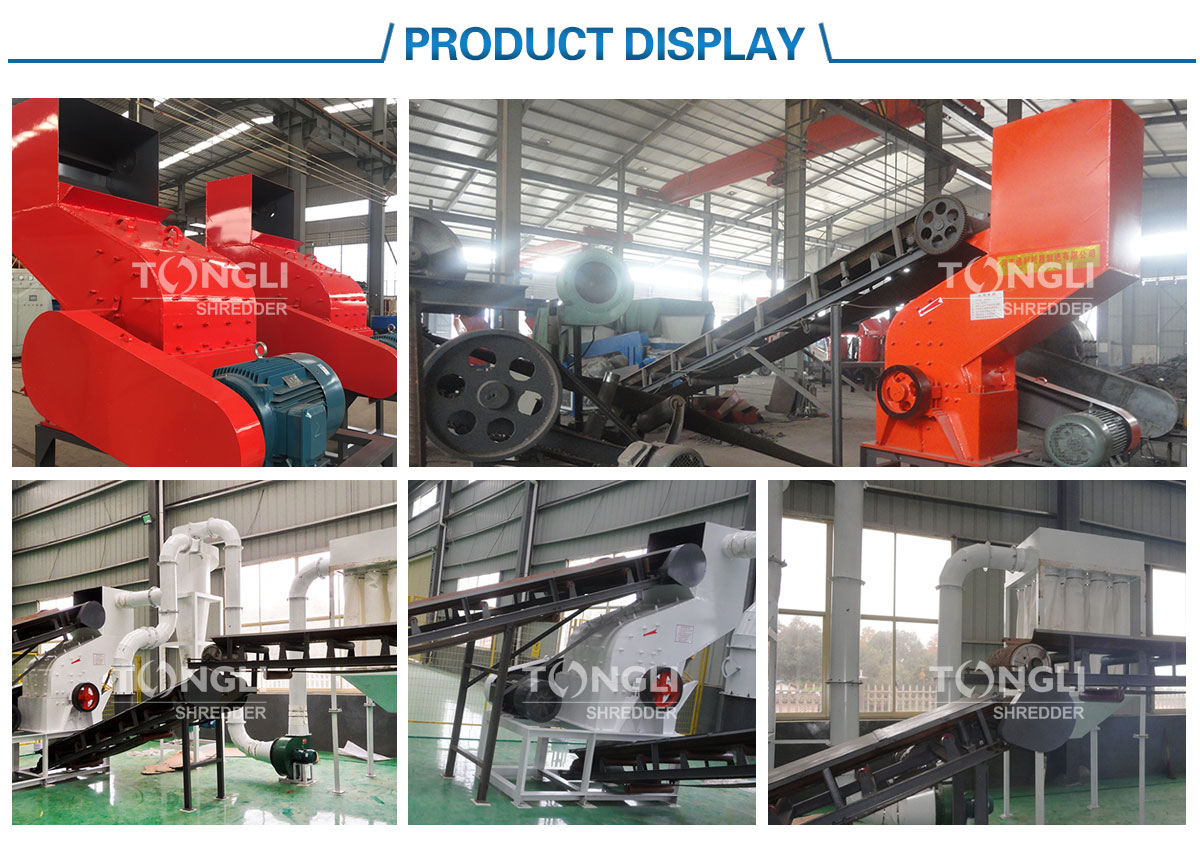

product display
